This compact Gas Powered Rotary Hammer
Drill will allow users to drill rock
and concrete in almost any environment
(always use with proper ventilation in
enclosed areas). Besides being highly
effective at drilling holes in the
drill/hammer mode the tool easily switches
to rotary only or hammer only modes and
also has a unique feature allowing users
to rotate SDS shank chisels to a preferred
angle before using in the hammer only
mode. Packaged in a metal tool case which
includes a manual and fuel mixing bottle.
Highly recommended for back country
projects especially where electric power
is not easily available and lots of holes
will be required. Absolutely the best gas
powered SDS rotary-hammer drill currently
in production!
Rotary hammer drills are the
best tools for drilling holes required by
Micro-Blaster System in both concrete as
well as stone. Tools labeled "Hammer
Drills" and having a 3 jaw chuck should be
avoided as they will take many times
longer to establish the required holes.
Make sure the drill you intend to use
takes a SDS+ shank drill bit and use only
5/16 inch diameter drill bits with your
Micro-Blaster System.
WE NOW CARRY ITEMS FROM:
Manufacturer: Robert Bosch Tool Corp.

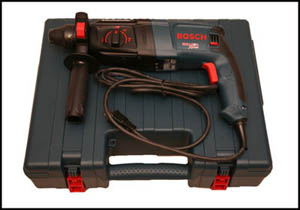

Bosch 11253VSR Rotary Hammer Drill
The BOSCH 11253VSR Rotary Hammer-Drill
is an ideal tool for
the production of holes required for our
Micro-Blaster systems.
With a maximum drilling diameter of 1
inch (25.4mm) it
easily accommodates the 5/16 inch
diameter SDS+ bits required
for use with our systems. Not limited to
drilling holes in the
rotary hammer mode or regular drilling
mode, the 11253VSR is
easily switched to a “Hammer Only” mode
providing a powerful
chipping function useful for separating
cracked material. Rated at
7.2 amps at 110 vac this drill works
well with our 1100 watt inverters
and small generators in remote areas.In
a form factor just under
15 inches in length and weighing in at
6.4 lbs the 11253VSR develops
up to 2.2 ft.-lb. of blow energy
while delivering up to 5800 blows
per minute. The 11253VSR comes complete
with 360 degree
auxiliary handle, depth gauge, rugged
carrying case, and a
one year unconditional guarantee from
Bosch.
Bosch

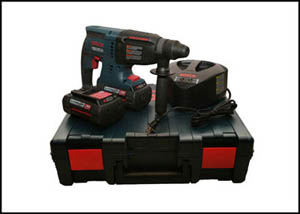

11536VSR Cordless Rotary Hammer Drill
The Bosch
11536VSR battery powered Rotary-Hammer
Drill, in our opinion, is currently the
best production tool of it’s kind.Supplied
with 2 Lithium-Ion 36V Fat-Pack Litheon
Batteries the 11536VSR will out drill
any of its 36V competitors while adding
a powerful chipping function in the
“Hammer Only” mode. With a maximum
drilling diameter of 1 inch (25.4mm) it
easily accommodates the 5/16 inch (8mm)
diameter SDS+ bits required for use with
our rock and concrete breaking systems.Weighing
in at 9.6 lbs (4.3kg) and with an
overall length of 15 inches (380mm) the
11536VSR delivers up to 2.2 ft.-lb of
blow energy at up to 4,260 blows per
minute. Batteries can be charged to 80%
in only 30 minutes and last far longer
and deliver more power than previous
ni-cad designs. The 11536VSR comes
complete with 360 degree auxiliary
handle, depth gauge, rugged carrying
case, and a one year unconditional
guarantee on tool and 2 years free
battery replacement from Bosch.

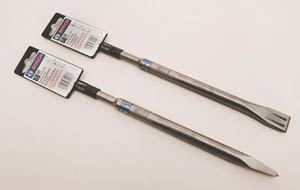

Bosch SDS+
Chisel & Moil Points
These
accessories, when combined with either of
the 2 Bosch Rotary-Hammer Drills or the
Gas Powered Rotary-Hammer Drill shown on
this page, allow the user to use the
“Hammer Only” function on these tools to
open up cracks formed in Micro-Blasted
material.This is especially recommended for
working with difficult to break rock or
concrete to remove cracked but still
attached material from the mass being
demolished, i.e. soft rock or concrete.Made
of high quality tool steel and properly
heat-treated these accessory tool bits
will provide excellent service and greatly
extend the usefulness of any SDS+
Rotary-Hammer Drill with a “Hammer Only”
function.
Manufacturer: CS
Unitec
Air
Rotary Hammer Drill — SDS Plus
This air powered Rotary Hammer Drill is
the ultimate tool for drilling holes for
the Micro-Blaster System, especially if
you need to drill a lot of them. Unit
includes SDS+ chuck for use with our 5/16"
drill bits, variable throttle for 0-3000
blows per minute with an out put of .7 HP
at 90 psi. Capable of drilling up to 1"
dia. holes in concrete and manufactured in
Germany to exacting specifications it is
available in an UNDERWATER VERSION
(Manufacturers #: 2 2404 0030, part#: 2
2404 0010 shown above for use out of
water). Why are we selling an underwater
version? Because we have an adapter kit in
the works to allow the Micro-Blaster II
system to be used under water at depths of
20 ft. Hopefully available by September
'07

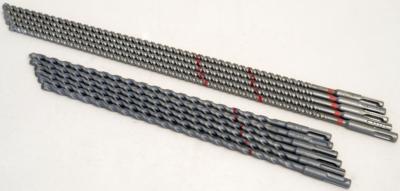

SDS+ DRILL BITS FOR MICRO-BLASTER I &
II
Many of our customers have had problems
finding the proper 5/16" dia. drill bits for
their Micro-Blaster Systems. We now stock 2
models which will produce the required
holes. The shorter of the 2 models shown
above will drill up to 12" deep holes for
double cartridge shots and is marked with a
red stripe at 10" from the tip for single
cartridge shots. The longer bit pictured has
the capability of drilling up to 16" deep
which will allow users the option of using
1, 2, 3, or up to 4 cartridges per shot.
This bit also has a longer lasting carbide
tip which should give excellent service in
even the hardest materials.

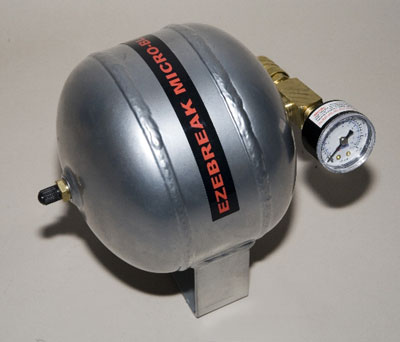

Micro-Blaster II Air Tank
When
charged
with 120 psi of air will reliably trigger
three Micro-Blaster II Heads simultaneously.
Easily recharged in the field with Bicycle
Tire Pumps between shots and provides
extreme portability for working in remote
areas. Materials: Powder Coated Steel Tank,
Brass Fittings. Dimensions Overall:
8"Lx6”Dx7.25"H (228x152x184mm) Max Pressure:
150 psi Max. Capacity: 0.5 Gal. Weight: 4
lbs.

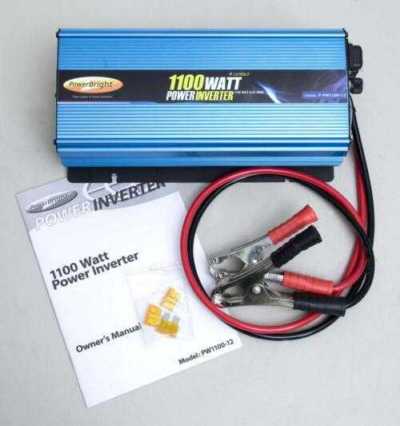

PowerBright™ 1100 WATT POWER INVERTER
This accessory allows the use of 115 VAC
Rotary Hammer Drills in almost any
location you can get your vehicle,
including ATV's with 12 VDC systems.
Easily attached to a vehicle battery with
the included cable and clips or the
inverter can be permanently mounted inside
your vehicle (4 gauge cable recommended
for permanent installation). Supplied with
automatic overload protection, thermal
protection, polarity protection and a
switched voltage/wattage display, this
unit's advanced features will insure years
of trouble free service. Inverter comes
complete with attachment cables, a spare
set of fuses and manual. Warranty by
manufacturer: 1 year against defects.
TIP: We recommend a minimum 14 gage
grounded (3 prong) extension cord for runs
up to 50 ft. For longer runs use a 12
gauge cord up to 100 ft. This unit will
also power a small 115 VAC Compressor for
recharging your air source in the field.
Very handy when working in remote areas.
Check label on compressor to determine
max. power required and do not overload
inverter.

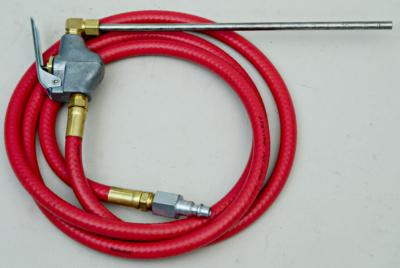

Other than drilling, the most tedious aspect
to using your Micro-Blaster is the hole
cleaning process. To speed up this operation
we have developed the blow gun assembly seen
above. Equipped with a 1/4" quick connect
plug (Industrial Interchange, same as our
manifold hose connector), a 5 ft. air hose,
a lever valve and a 9.5" long, 1/4" dia.
stainless tube, the unit will quickly and
thoroughly clear the dust from drilled holes
in just one or two seconds. Since its use is
intermittent only a small compressor,
capable of 100 psi output, is required for
operation.
!!!SAFETY NOTICE!!! THIS BLOW GUN
ASSEMBLY IS NOT OSHA COMPLIANT AS IT DOES
NOT LIMIT PRESSURE AT THE NOZZLE TO 30 PSI
CARE SHOULD BE USED NOT TO DIRECT OUTPUT
AT PERSONNEL. ALWAYS WEAR APPROVED EYE
PROTECTION WHEN USING THIS AND OTHER
EZEBREAK PRODUCTS WORK SAFELY AND CRACK
WISELY!
Air Tank
Conversion Kit
If you already have your own air tank you
may need components to connect the
Micro-Blaster to your tank. For your
convenience we have put together a kit
containing the above components. Ask
your Dealer or Ezebreak for the Air Tank
Conversion Kit (Part# MBIIx3-ATCK) if you
cannot easily find these components locally.
Click here for
detailed instructions and tips.
